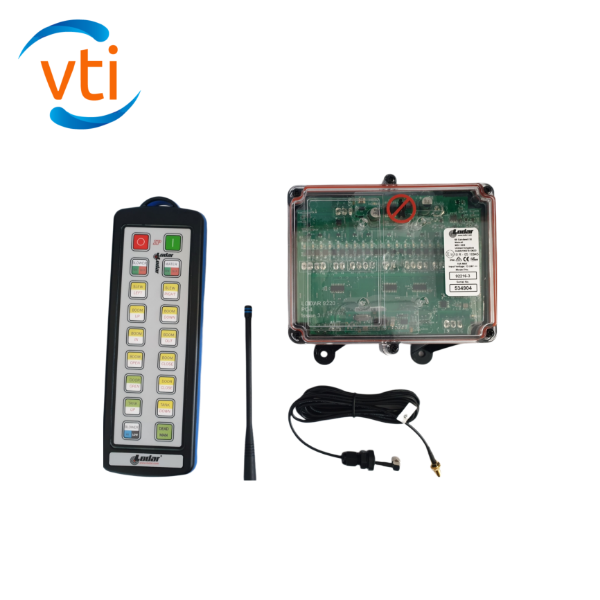

16 Function IP Remote Control System Functions: 16 Switch: Tactile Dome Battery: 4 x AAA alkaline manganese (6 Volts) Current draw, Quiescent: 15 micro amps Current draw, Operating: 24 milliamps Protection, Reverse Polarity: Protected IP Rating: 67 Registration Codes: Over 16 million Temp. Range: -20°C to 55°C (-4°F to 131°F) Range: 60 m (200 ft.) from the Receiver, when driving a momentary output, without signal drop out. 300 m (1,000 ft.) option available Transmitted Power: 1 mW Typical Supply: 12/24VDC Deep Receiver Functions: 16 Material: Black PVC Base& Clear Lid IP Rating: 67 Switching: 15-amp FET’s Master: Optional Size: 149mm x 119mm x 69mm Transmitters: Mini/Standard/IP Range: 45 m (150 ft.) with Mini Transmitter150 m (500 ft.) option available; 60 m (200 ft.) with Standard Transmitter 300 m (1,000 ft.) option available. Clear Lid allows sight of LEDs for fault finding. 2cm deeper base to allow for extra wiring. Same footprint as Standard Receiver. External Aerial An external aerial maintains full operating range of 60/300 metres (200/1,000 ft.) if performance is compromised. An external aerial is simply added to the SMA fitting on the PCB. An aerial will NOT increase the stated range.
