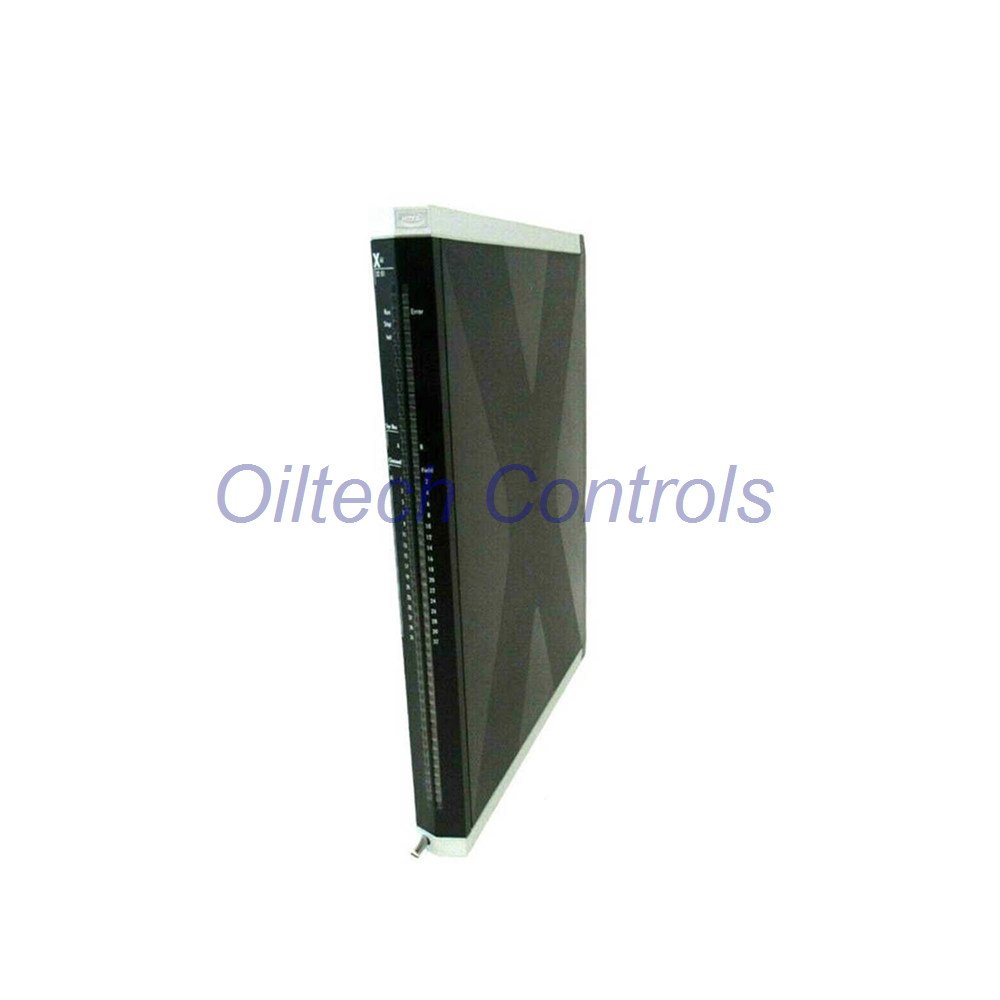

X-AI 32 01 HIMA Analog Input Safety Module 32-Channel PES

HIMA X-AI 32 01 Analog Input Module HIMax PLC SystemThe HIMA X-AI 32 01 safety-related analog input module delivers exceptional performance within the programmable electronic system (PES) architecture. Engineered by HIMA for high-availability automation, this premium hardware component ensures precise data acquisition and functional safety in demanding process environments.Core Safety and System ArchitectureThe HIMA X-AI 32 01 module carries full TÜV certification for critical safety-related applications up to SIL 3 limits.This module complies completely with international safety standards including IEC 61508, IEC 61511, and also IEC 62061.The hardware meets Category 4 and Performance Level e requirements according to the EN ISO 13849-1 standard.You can insert this module into any available HIMax base plate slot except reserved system bus locations.Internal circuitry provides complete galvanic isolation between the input channels, system bus, and the 24 VDC supply.Key Technical SpecificationsBrand / Manufacturer: HIMAModel Name: X-AI 32 01Measurement Range: 0/4 to 20 mA nominal operating range with a maximum current limit of 22.5 mA.Resolution / Shunt: 12-bit digital resolution utilizing an integrated 200 Ω internal shunt for precise current measurement.Frequency Response / Sampling: 2 ms hardware sampling time synchronized directly with the user program cycle time.Linearity / Accuracy: ±0.15% metrological accuracy of the final value across the full temperature range.Sensitivity / Settling Time: 15 ms rapid settling time to reach 99% of the actual process value.Temperature Range: 0 °C to 60 °C standard operating temperature with storage limits from -40 °C to 85 °C.Environmental Tolerance: 95% maximum relative non-condensing humidity combined with a rugged IP20 rated protection enclosure.Anti-Interference Ability: >60 dB common mode interference voltage suppression at standard 50 Hz and 60 Hz frequencies.Power Supply: 24 VDC nominal voltage input with a operational current range between 500 mA and 1.5 A.Integrated Transmitter Supply ManagementThe HIMA X-AI 32 01 contains 32 dedicated transmitter supplies providing a nominal output voltage of 26.5 VDC.Each independent transmitter supply channel delivers a maximum continuous output current rating of 30 mA.Built-in safety diagnostics monitor undervoltage conditions below 22.5 VDC and overvoltage conditions above 30 VDC.The smart power management system permits a maximum of 12 transmitter supplies to undergo simultaneous short-circuits.The module deactivates the entire transmitter supply if an overload persists on multiple channels for over 3 seconds.The control circuit automatically reactivates the transmitter supply within 30 seconds after the field short-circuit disappears.The maximum permissible loop load including the field transmitter and field wiring is 750 Ω at 22.5 mA.Field Installation and Wiring GuideField wiring connects via 8 separate cable plugs where each individual plug contains 12 connection poles.The terminal blocks accept solid single-wire and finely stranded conductors ranging from 0.2 mm² to 1.5 mm².You must strip the insulation exactly 6 mm from the wire end before insertion into the terminal.Installation requires a 0.4 mm x 2.5 mm slotted screwdriver to secure the terminal screw connections properly.Tighten each terminal screw to a torque specification between 0.2 Nm and 0.25 Nm maximum.Physical dimensions measure 310 mm high by 29.2 mm wide by 230 mm deep with a total weight of 1.4 kg.For urgent technical inquiries, email [email protected] or text our support line via 86 158 8020 0923 immediately.Commercial Shipping and Package ContentsHIMA X-AI 32 01 Analog Input Module (New original industrial automation hardware component).8 Pieces of 12-Pole Cable Plugs (Essential terminal connectors for field zone sensor wiring).Fast Express Delivery Options: Shipments move globally via reliable couriers like FedEx, UPS, or DHL.Frequently Asked Questions and Selection GuideHow many analog signals can this module process simultaneously? The module handles 32 distinct analog current inputs and references them all to a single common ground.What happens if multiple field transmitters short circuit at the same time? The hardware allows 12 shorted supplies for 3 seconds before shutting down the entire supply to protect components.Can I use this module for safety instrumented systems requiring SIL 3 protection? Yes, TÜV certified this hardware for SIL 3 applications under IEC 61508 and IEC 61511 compliance standards.How do I select between different HIMax input modules for my project? Evaluate your field sensor density, required loop power, response times, and safety integrity levels before purchasing parts.Where can I purchase genuine HIMA parts with reliable global logistics support? Contact Oiltech Controls through [email protected] or call 86 158 8020 0923 for pricing and express shipping availability.Author: Oiltech ControlsCopyright © 2026 Oiltech Controls Limited. All rights reserved.Original Source: https://www.oiltechcontrols.com/All rights reserved.
