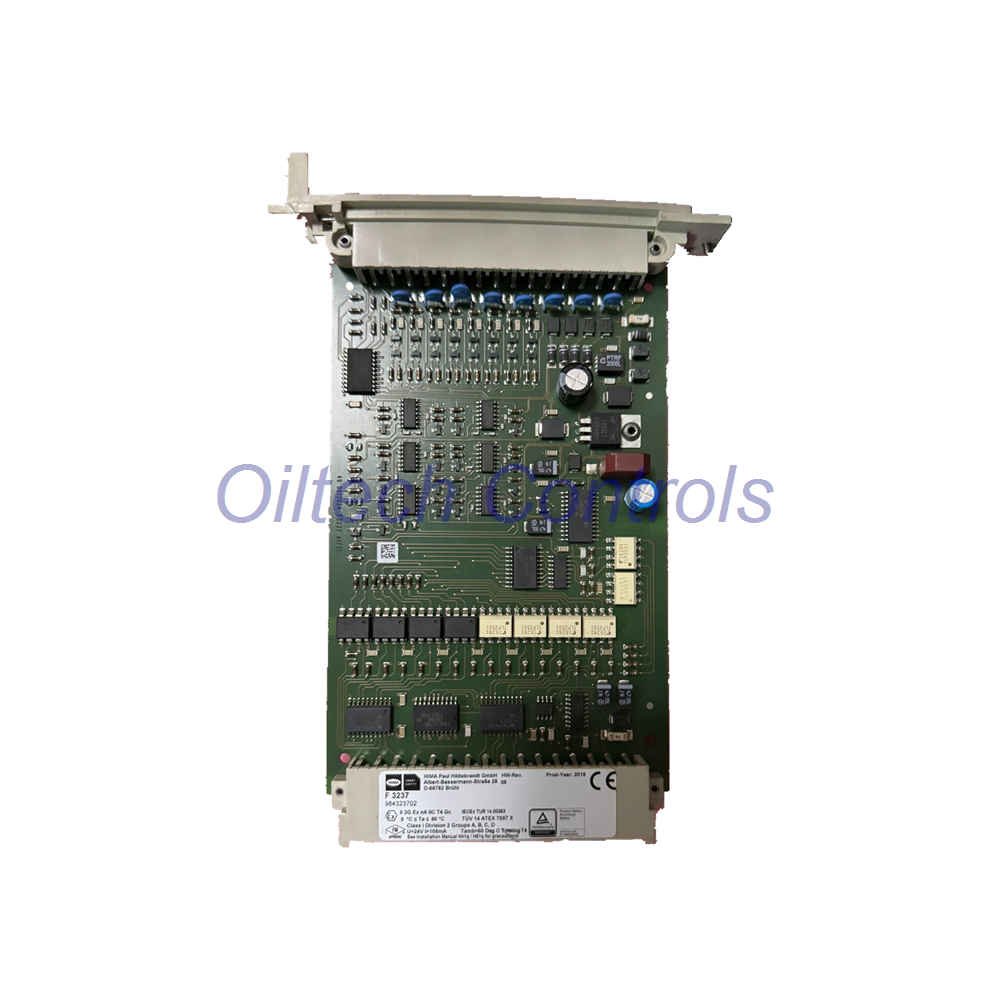

F3237 8-Fold Safety Input Module | SIL Rated NAMUR Sensor Interface
$ 97.57
Product OverviewThe F3237 is a high-performance 8-fold safety input module for critical automation. It connects safety-related proximity switches and resistor-wired sensors. This module ensures maximum operational safety in harsh industrial zones. It supports safety requirements from AK 1 to AK 6. The unit features automatic self-testing during operation for system integrity.Technical SpecificationsBrand/Model: HIMA F3237 Safety Input Module.Input Capacity: 8 independent input channels.Compatibility: DIN 19234 (NAMUR) and resistor-wired sensors.Switching Time: Approximately 10 ms fast response.Supply Voltage: 8.2 V nominal.Operating Power: 5 V at 90 mA; 24 V at 170 mA.Signal Range 0: 0.35 mA to 1.2 mA.Signal Range 1: 2.1 mA to 6.0 mA.Wire Break Detection: ≤ 0.28 mA threshold.Short Circuit Detection: ≥ 6.5 mA threshold.Line Specifications: Impedance ≤ 50 Ohm; length up to 1000 m (0.5 mm²).Physical Size: 4 TE standard rack space.Diagnostic & Operational FeaturesComprehensive Monitoring: Detects short circuits and wire breaks on sensor lines.Advanced Test Routines: Includes switch-on/off, crosstalk, and input filter testing.Safety Logic: Uses HB-RTE- software blocks for validated operation.Sensor Compatibility: Easily adapt non-standard sensors with a 47 kΩ parallel resistor.Resistor Specs: Shunt R* 681 Ohm; 1%; 0.25 W (Part No: 00 0751681).Installation, Support & LogisticsInstallation: Simple mounting in safety PLC racks. Ensure cables meet impedance limits.Maintenance: Automated testing minimizes manual inspection needs.Warranty: Includes a comprehensive 12-month quality guarantee.Shipping: Fast global delivery via FedEx, UPS, or DHL.Technical Assistance: Contact us at [email protected] or call 86 158 8020 0923 via WhatsApp.Copyright © 2026 Oiltech Controls Limited. All rights reserved.Original Source: https://www.oiltechcontrols.com/All rights reserved.
