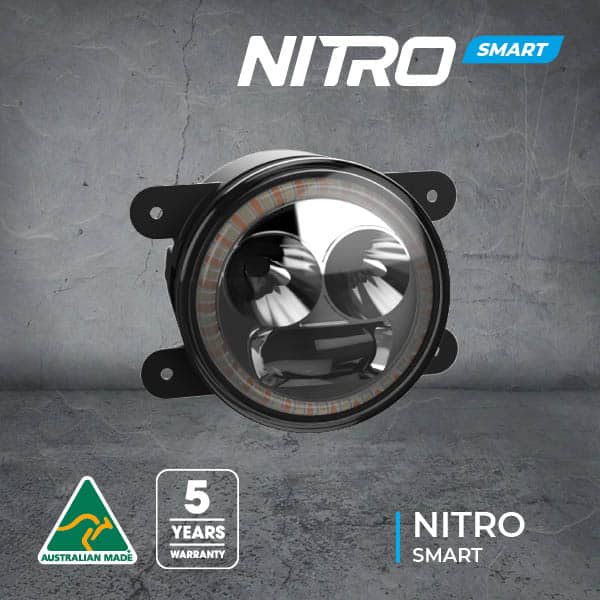

NITRO SMART Driving Light

Smart Driving Light The Nitro Smart has been designed to integrate with bullbars and bumpers to provide significantly more light output without compromising compliance or the OE look of your vehicle. The module delivers 1 lux at 500m from the driving light function, in addition to the other functions of fog, DRL and indicator. Having external adjustment means the units can be tweaked to ensure you get optimum performance with any load. Wiring harness An optional generic wiring harness is available.  Please note this is generic and not vehicle specific.  Although it makes installation simpler we recommend that all Nitro products are installed by a qualified electrician. Beam Patterns 4000k vs 5700k Colour Temperature [bafg id=”23455″] Nitro Smart Hi Beam/ Low Beam comparison [bafg id=”23656″] Wiring Diagram Product Specification Light Source LED Voltage 9V-32V Current Draw 4.4A @ 13.5V Operating Temperature -40°C to 80°C Waterproof rating IP67 Connector Type 8 PIN JST Housing Aluminium Lens Construction Polycarbonate Carrier GFN Colour Temperature 5700K Lifespan 50’000 Hours Diameter / Dimensions 100mm Net Weight 800g Mounting Suitable 4 Point Warranty 5 Years SKUs: Wiring harness and pair of lights: SB90/KIT Pair of lights only (no wiring harness): SB90/PR One light only: SB90
