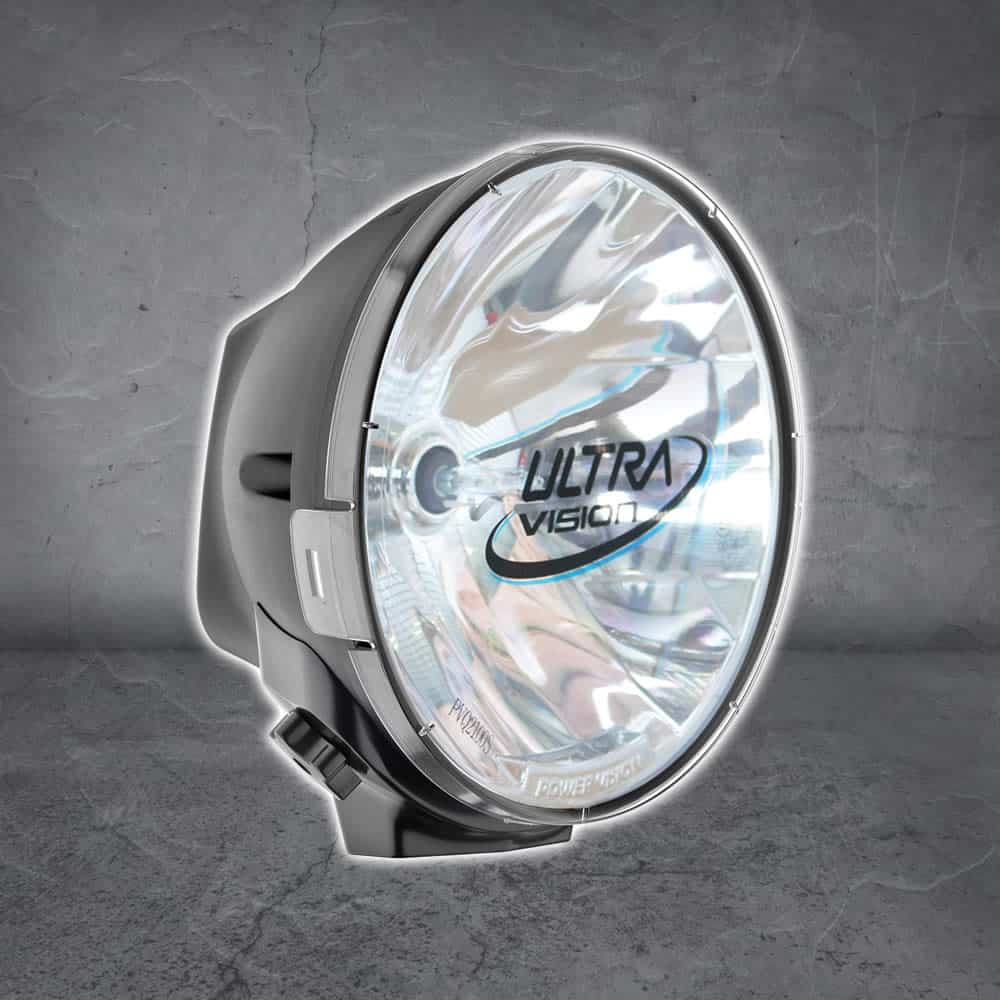

QUATTRO Elite HID Driving Light

The Elite started the Ultra Vision manufacturing journey. A tough GFN body with polycarbonate lens ensures this is the most robust HID driving light on the market. A low profile bracket design facilitates easy fitment and adjustment and has proved to stand the test of time for vibration and impact. The hardened polycarbonate lens cover protects the lamp from impact and is replaceable to ensure maximum visibility is maintained. Elites are available in 2 wattages (35W and 70W) and pencil and spread beams. Added to the option of light colour 4300K or 6000K you can be assured that whatever your terrain and environment there will be an option to deliver the light output you require. Each pair of lights is supplied with clear polycarbonate lens covers and a wiring harness.   SPECIFICATIONS 35W 70W Wattage 35W 70W Light Source HID Xenon HID Xenon Voltage 9V-32V DC 9V-32V DC Current Draw 3.75A @ 12V 5.35A @ 12V Operating Temperature -40°C to 80°C -40°C to 80°C Waterproof rating IP68 IP68 Connector Type Deutsch DT 2 Pin Deutsch DT 2 Pin Housing Polyamide (Nylon) Polyamide (Nylon) Lens Construction Polycarbonate Polycarbonate Bracket Aluminium Easy Adjust Aluminium Easy Adjust Beam Colour 4300K or 6000K 4300K or 6000K Lifespan 50’000 Hours 50’000 Hours Diameter 210mm 210mm Net Weight 2kg 2kg Beams Available Pencil and Spread Pencil and Spread Warranty 3 Years 3 Years Harness included Yes Yes Part Numbers Product type Product number 70W, Spread Beam 6000K PVQ2100M7S6 70W, Spread Beam 4300K PVQ2100M7S4 70W, Pencil Beam 6000K PVQ2100M7P6 70W, Pencil Beam 4300K PVQ2100M7P4 35W, Spread Beam 6000K PVQ2100S6 35W, Spread Beam 4300K PVQ2100S4 35W, Pencil Beam 6000K PVQ2100P6 35W, Pencil Beam 4300K PVQ2100P4
